Loader Backhoe, 10', 2,866 lbs. lift capacity (Yanmar CBL40)
Specs (Specifications may change due to continuous product development)

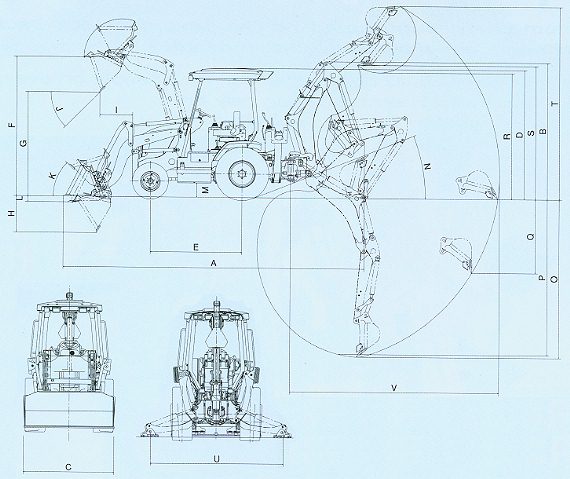

CBL 40 Dimensions | | A | B | C | D | E | F | G | H | I | J | K | | ft-in | 19'6" | 8'7" | 5'10" | 8'2" | 5'9" | 9'6" | 7'3" | 2'3" | 1'10" | 45 deg | 45 deg | | mm | 5946 | 2626 | 1778 | 2486 | 1750 | 2908 | 2217 | 687 | 567 |
| L | M | N | O | P | Q | R | S | T | U | V | ft-in | 4" | 1'1" | 21.5 deg | 10' | 9'10" | 4'11" | 7'11" | 8'4" | 12'2" | 8'3" | 13'2" | mm | 91 | 321 | 3052 | 3002 | 1504 | 2422 | 2529 | 3703 | 2522 | 4022 |
Specifications | 1. Operating Weight (Includes operator @ 165 lbs.) | 7750 lbs (2515 kg) | | 2. Engine | Type | 3TNV84T-XBL | | | Rated Output (Gross) | 37.2 hp (27.7 kW) | | 3. Overall Transport Length | 19'6" (5946 mm) | | 4. Overall Width (w/ Loader Bucket) | 5'10" (1778 mm) | | 5. Overall Transport Height | 8'7" (2626 mm) | | 6. Wheelbase | 5'9" (1750 mm) | | 7. Ground Clearance | 1'1" (321 mm) | | 8. Transmission type | Mechanical Controlled Load Sensing HMT | | 9. Transmission Ranges / Speeds | 2 / Infinite | | 10. Maximum Travelling / Speeds | Forward | 13.7 mph (22 km / h) | | | Reverse | 7.8 mph (12.5 km / h) | | 11. Maximum Traction Force | 5622 lbs. (3550 kgf) | | 12. Fuel Tank Capacity | 16.4 gals. (62 l) | | 13. Tire | Front | 27 x 10.5 - 15, 6 ply | | | Rear | 15 - 19.5 6 ply | | 14. Rear PTO Output (Option) | 24 hp / 540 rpm | | 15. 3-Point Hitch (Option) | Category I | Loader | | 16. Clearance With Bucket Dumped | 7'3" (2217 mm) | | 17. Maximum Lift Height To Pivot Pin | 9'6" (2908 mm) | | 18. Reach - Fully Raised | 1'10" (567 mm) | | 19. Maximum Dump Angle | 45 deg. | | 20. Bucket Self-Leveling (Mechanical) | Standard | | 21. Lift Capacity top Maximum Height at Pivot Pin (w/o Bucket) | 2866 lbs (1300 kgf) | | 22. Breakout Force By Bucket Cylinder | 4850 lbs (2200 kgf) | | 23. Maximum Oil Flow | 11 gpm (42L / min) | | 24. Maximum Pressure | 3000 PSI (210 kgf / cm²) | Backhoe | | 25. Maximum Digging Depth | 10'0" (3052 mm) | | 26. Digging Depth / 2 ft. Flat Bottom | 9'10" (3000 mm) | | 27. Truck Loading Height | 8'4" (2529 mm) | | 28. Maximum Reach / Ground Level to Swing Spot | 13'2" (4022 mm) | | 29. Boom Swing Angle | 180 deg. | | 30. Maximum Digging Force | Bucket | 5798 lbs (2630 kgf) | | | Arm | 3582 lbs. (1625 kgf) | | 31. Maximum Oil Flow | 11 x 2 gpm (42 x 2l / min) | | 32. Maximum Pressure | 3000 psi (210 kgf / cm²) | | 33. Number of Pumps | 2 x Piston (Variable) | |
