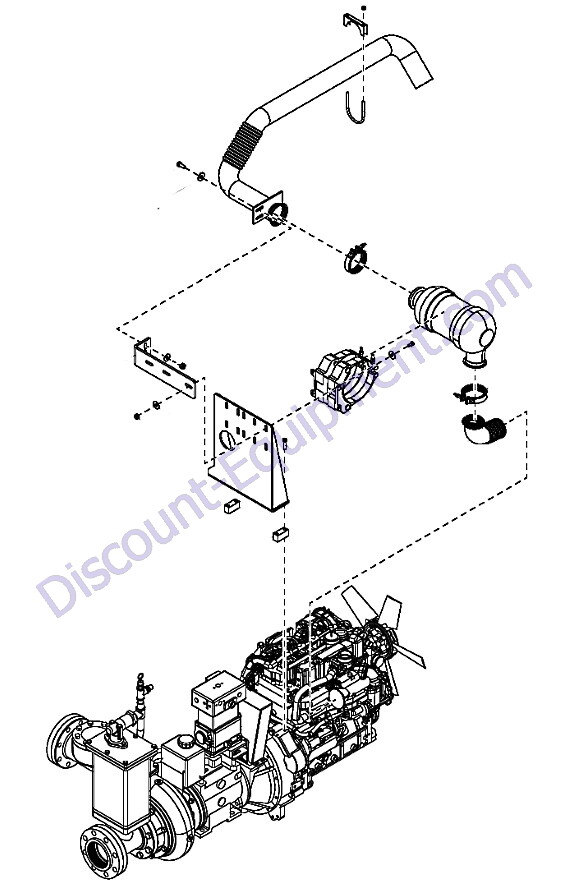

Generac Magnum MTP4DZV Exhaust System Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





19336

19336 Clamp hose SAE44 (2.31-3.25) Generac Magnum MTP4DZV Trash Pump

Your Price: $3.29

Click For Price and Specs

26480

26480 Sleeve high temp 4.0 Generac Magnum MTP4DZV Trash Pump

Your Price: $24.05

Click For Price and Specs

31470

31470 DOC Deutz D2.9 Generac Magnum MTP4DZV Trash Pump

Click For Price and Specs

31471

31471 Clamp DOC Generac Magnum MTP4DZV Trash Pump

Click For Price and Specs

31539B

31539B Spacer Generac Magnum MTP4DZV Trash Pump

Your Price: $40.54

Click For Price and Specs

31547B

31547B Weldment DOC support Generac Magnum MTP4DZV Trash Pump

Your Price: $259.00

Click For Price and Specs

31596

31596 Weldment DOC pipe Generac Magnum MTP4DZV Trash Pump

Your Price: $949.99

Click For Price and Specs

31629B

31629B Bracket tail pipe support Generac Magnum MTP4DZV Trash Pump

Your Price: $73.48

Click For Price and Specs

53234

53234 Weldment DOC outlet pipe Generac Magnum MTP4DZV Trash Pump

Your Price: $459.00

Click For Price and Specs

60119

60119 Washer .312 flat .875/.070 Generac Magnum MTP4DZV Trash Pump

Your Price: $3.29

Click For Price and Specs

60152

60152 Screw M10-1.50 x 60 std hex G8.8 Generac Magnum MTP4DZV Trash Pump

Your Price: $1.89

Click For Price and Specs

60256

60256 Screw .312-18 x 1.50 std hex fully threaded, G5 Generac Magnum MTP4DZV Trash Pump

Your Price: $3.28

Click For Price and Specs

60303

60303 Nut .312-18 nylock G2 Generac Magnum MTP4DZV Trash Pump

Your Price: $11.13

Click For Price and Specs

60352

60352 Screw .375-16 x 1.25 Hex Generac Magnum MTP4DZV Trash Pump

Your Price: $3.29

Click For Price and Specs

60358

60358 Nut .375-16 nylock G5 Generac Magnum MTP4DZV Trash Pump

Your Price: $15.43

Click For Price and Specs

60386

60386 Washer .375 flat .993/.064 Generac Magnum MTP4DZV Trash Pump

Your Price: $3.29

Click For Price and Specs

61064

61064 Clamp muffler 3.0 light duty Generac Magnum MTP4DZV Trash Pump

Your Price: $11.31

Click For Price and Specs

63248

63248 Clamp V-band 3.88 ID/.40 SC width Generac Magnum MTP4DZV Trash Pump

Your Price: $42.58

Click For Price and Specs
