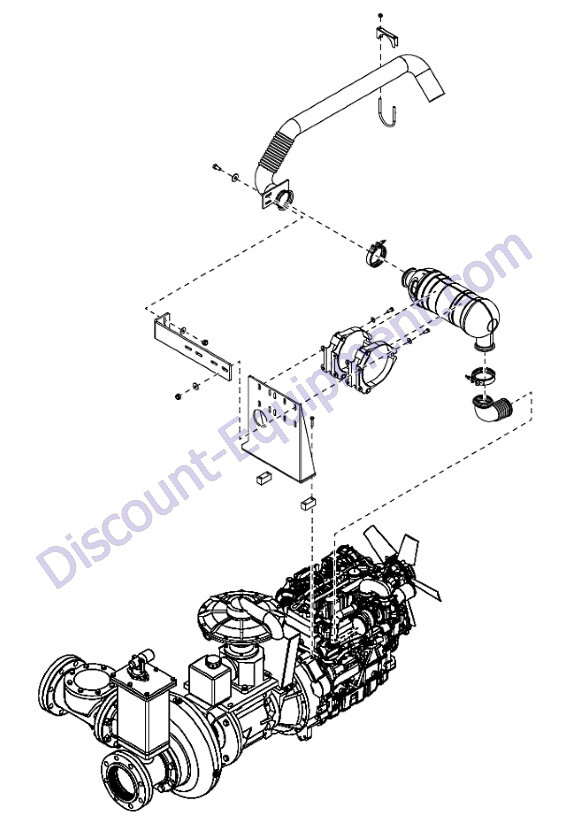

Generac Magnum MTP6DZD Exhaust System Assembly

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

19336 Clamp hose SAE44 (2.31-3.25) Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

26480 Sleeve high temp 4.0 Generac Magnum MTP6DZD Trash Pump

Your Price: $24.05

Click For Price and Specs

31449 DOC Deutz TD2.9 Generac Magnum MTP6DZD Trash Pump

Click For Price and Specs

31450 Clamp DOC Generac Magnum MTP6DZD Trash Pump

Click For Price and Specs

31539B Spacer Generac Magnum MTP6DZD Trash Pump

Your Price: $40.54

Click For Price and Specs

31547B Weldment DOC support Generac Magnum MTP6DZD Trash Pump

Your Price: $259.00

Click For Price and Specs

31595 Weldment DOC pipe Generac Magnum MTP6DZD Trash Pump

Your Price: $989.99

Click For Price and Specs

31626B Bracket tail pipe support Generac Magnum MTP6DZD Trash Pump

Your Price: $99.21

Click For Price and Specs

53042 Weldment exhaust pipe Generac Magnum MTP6DZD Trash Pump

Your Price: $518.93

Click For Price and Specs

60119 Washer .312 flat .875/.070 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60152 Screw M10-1.50 x 60 std hex G8.8 Generac Magnum MTP6DZD Trash Pump

Your Price: $1.89

Click For Price and Specs

60256 Screw .312-18 x 1.50 std hex fully threaded, G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.28

Click For Price and Specs

60303 Nut .312-18 nylock G2 Generac Magnum MTP6DZD Trash Pump

Your Price: $11.13

Click For Price and Specs

60352 Screw Hex .375-16 x 1.25 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60358 Nut .375-16 nylock G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $15.43

Click For Price and Specs

60386 Washer .375 flat .993/.064 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

61064 Clamp muffler 3.0 light duty Generac Magnum MTP6DZD Trash Pump

Your Price: $11.31

Click For Price and Specs

63248 Clamp V-band 3.88 ID/.40 SC width Generac Magnum MTP6DZD Trash Pump

Your Price: $42.58

Click For Price and Specs
