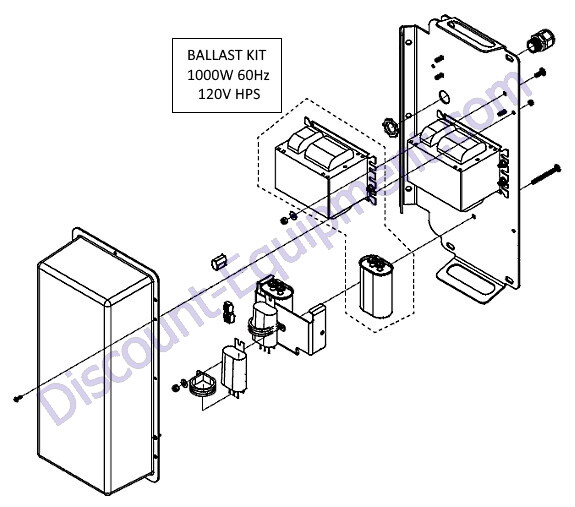

Allmand Night-Lite Pro II LD and V-Series 1000W HPS 60Hz 120V Ballast Box Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part
  • For LD-Series Models with Serial Number: 0001PRO215 and UP ~ OR ~ For V-Series Models with Serial Number: 0001PRO2V15 and UP





022036

022036 3/4 CORD GRIP NUT Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

028015

028015 LAMP IGNITOR 1000W Allmand Night-Lite Pro II LD and V-Series Light Tower

Your Price: $83.69

Click For Price and Specs

041029

041029 #8-32 x 1/2 HEX WASHER HEAD SCREW Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

044003

044003 #8-32 NC KEPS NUT Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

044023

044023 1/4-20 NYLOCK HEX NUT PL Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

047009

047009 1/4 FLAT WASHER SS Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

053006

053006 1/4-20 x 3/4 CARRIAGE BOLT Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

100632

100632 Lamp Holder Assembly HD 1250 w/ Yoke w/ Lamp Allmand Light Tower

Your Price: $437.17

Click For Price and Specs

100718

100718 1/4-20 x 2-1/4 CARRIAGE BOLT Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

102622

102622 CONNECTOR BLOCK 5 TERMINAL LEVERS Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

102623

102623 LEVER LOCK 3-PIN Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

102624

102624 LEVER LOCK 2-WIRE Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

102752

102752 BALLAST TOP MODULAR BOX Allmand Night-Lite Pro II LD and V-Series Light Tower

Your Price: $105.72

Click For Price and Specs

105287

105287 SCHEMATIC BALLAST 1000W 60Hz 120V Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

105914P

105914P MOUNT PLATE BALLAST BOX Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs

105916

105916 GRIP CORD NYLON Allmand Night-Lite Pro II LD and V-Series Light Tower

Your Price: $10.65

Click For Price and Specs

310115A

310115A CAPACITOR 26UF 60/50Hz 540V Allmand Night-Lite Pro II LD and V-Series Light Tower

Your Price: $211.55

Click For Price and Specs

310118

310118 BALLAST KIT 1000W 60Hz 120V HPS Allmand Night-Lite Pro II LD and V-Series Light Tower

Your Price: $576.03

Click For Price and Specs

680608P

680608P TAPPED CAPACITOR CLAMP Allmand Night-Lite Pro II LD and V-Series Light Tower

Your Price: $75.51

Click For Price and Specs

920365

920365 #28 CUSHION CLAMP Allmand Night-Lite Pro II LD and V-Series Light Tower

Click For Price and Specs
