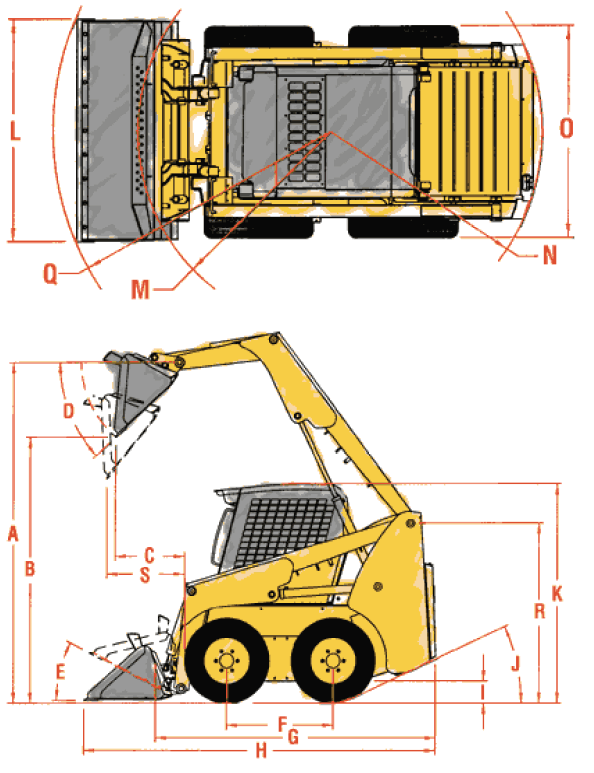

Skid Steer, 1350 lbs. (Mustang 2041) Overview Description Specs Operations Safety Brochures/Manuals Specs (Specifications may change due to continuous product development) Mustang Skid-Steer Loader 2041 Technical Specifications Engine Specs Make Yanmar Model 4TNV88 Displacement 133.6 cu. in (2.2 L) Number of Cylinders 4 Rated Net Power Output 46 HP (34 kW) @ 2600 rpm SAE-Rated Torque 103 ft lbs. (140 Nm) @ 1200 rpm Maximum Axle Torque 3959 ft. lbs. (5368 Nm) Fuel Tank 12.4 gallons (46.9 L) Electrical System Specs Battery Power 12 volt Cold Cranking Amps 650 amp Hydraulic System Specs Standard Auxiliary Hyydraulics 16.5 gpm (62.5 L/min) Optional Hi-Flow Auxiliary Hydraulics N/A Working Pressure 2750 psi (190 bar) Hydraulic Tank Refill/System Total 8.5/10 gal. (32.2/37.8 L) Capacities / Performance Specs SAE Breakout Force- Lift 2499 lbs. (10.8 kN) SAE Breakout Force - Tilt 2800 lbs. (12.4 kN) SAE Operating Load 1350 lbs. (612 kg) SAE Operating Load w/ Optional Weight Kit 1475 lbs (669 kg) Tipping Load 2700 lbs. (1225 kg) Lifting Arm Radial Travel Speed 0 - 76.5 mph (0 - 10.3 km/h) Optional Travel Speed NA Undercarriage Specs Wheel Base (F) 36.7" (932 mm) Ground Clearance (I) 8.3" (196 mm) Dimensions / Weight Specs Operating Weight 4600 lbs. (2087 kg) Length - With Bucket (H) 116.2" (3117 mm) Specifed Height (R) 59.5" (2951 mm) Overall Height - Top of ROPS (K) 71.9" (1826 mm) Clearance Circle - Front (w/o Bucket) (M) 43.4" (1102 mm) Clearance Circle - Front (w/ Bucket) (Q) 69.2" (1758 mm) Clearance Circle - Rear (N) 58.4" (1483 mm) Rollback Angle at Ground Level (E) 29° Departure Angle (J) 29° Reach at Specified Height (S) 36.6" (930 mm) Width w/o Bucket (10 x 16.5 HD Tires) (O) 58.8"/64.0" (1494/1626 mm) Length w/o Bucket (G) 91.1" (2418 mm) Height to Hinge Pin (A) 110" (2794 mm) Dumping Capacity Specs Dump Height (B) 86.5" (2197 mm) Dump Reach (C) 22.6" (574 mm) Dump Angle at Full Height (D) 42° Bucket Specs Width (L) 55" (1397 mm) Self-Leveling Bucket Optional Reference Bucket Capacity 10.5 cu. ft. (297 L)

---
